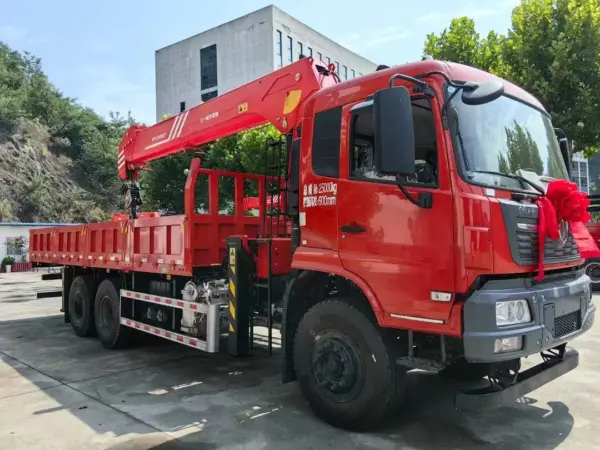

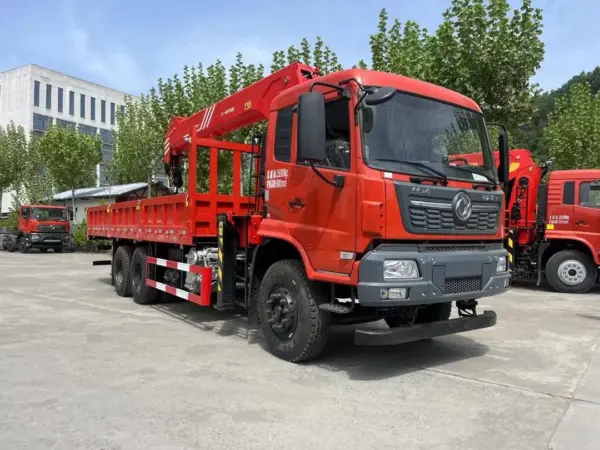

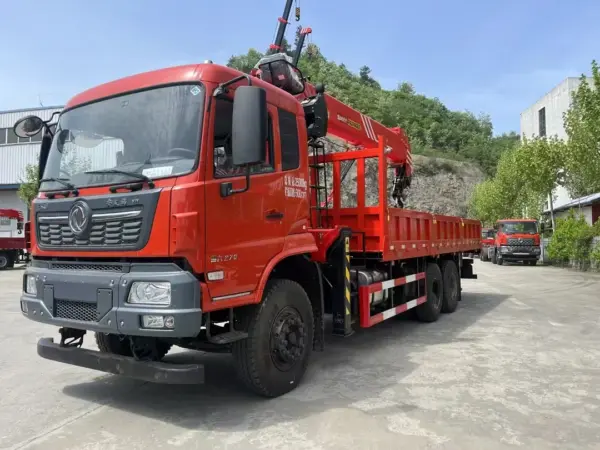

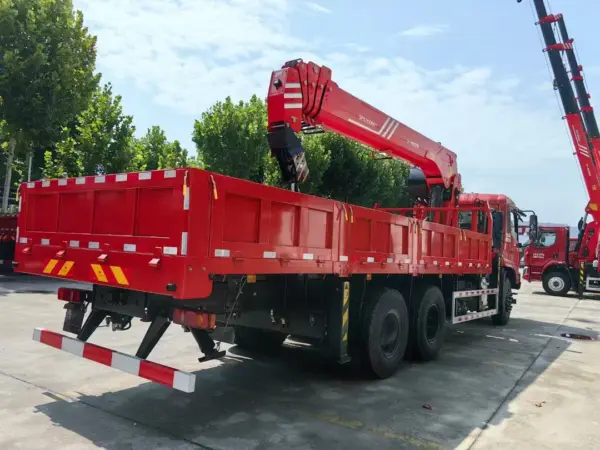

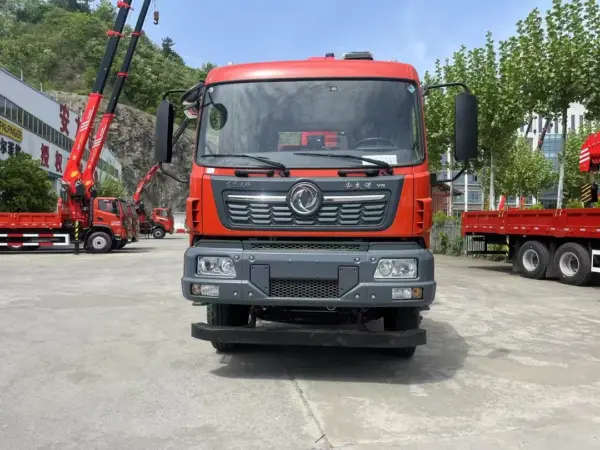

DONGFENG Tianjin 6×4 12 Ton Truck Mounted Crane with SANY PALFINGER
The DONGFENG Tianjin 6×4 12 Ton Truck Mounted Crane combines a Yuchai 270 HP diesel engine with a SANY PALFINGER SPS30000 5-section telescopic loader crane. Featuring a 19.5 m fully extended boom, 21.5 m maximum lifting height, reinforced triple-layer chassis frame and an 8.4 m heavy-duty cargo body, this crane truck is designed for construction material handling, machinery loading and cargo transportation.
Product Overview
The DONGFENG Tianjin 6×4 12 Ton Truck Mounted Crane is a heavy-duty lifting and cargo transportation vehicle equipped with a SANY PALFINGER SPS30000 12-ton five-section telescopic loader crane.
Powered by a 270 HP Yuchai diesel engine compliant with China VI emission standards, the truck combines lifting, loading, unloading and cargo transportation functions in one vehicle.
The DONGFENG Tianjin chassis features a 6×4 drive configuration, a 5,700 + 1,350 mm wheelbase, a reinforced 300 mm triple-layer chassis frame and tandem rear axles. Its robust structure provides a foundation for the crane installation and heavy-duty cargo transportation.
The specified SANY PALFINGER SPS30000 configuration features a 19.5 m fully extended boom, a 21.5 m lifting height, 360° continuous hydraulic slewing and wide-span stabilizers. These dimensions are subject to confirmation against the crane’s configuration-specific technical documentation.
An 8,400 × 2,450 × 550 mm reinforced engineering cargo body enables the vehicle to transport construction materials, machinery and industrial equipment within its approved load limits.
SANY PALFINGER SPS30000 12 Ton Loader Crane
The vehicle is fitted with a SANY PALFINGER SPS30000 telescopic loader crane, configured with a five-section straight boom for lifting and material-handling operations.
The crane integrates a hydraulic lifting system, telescopic boom, continuous slewing mechanism and front and rear stabilizers to support loading and unloading operations.
Crane Technical Specifications
| Specification | Details |
|---|---|
| Crane Brand | SANY PALFINGER |
| Crane Model | SPS30000 |
| Rated Lifting Capacity | 12,000 kg |
| Boom Type | Telescopic Straight Boom |
| Boom Sections | 5 |
| Fully Extended Boom Length | 19.5 m* |
| Maximum Lifting Height | 21.5 m* |
| Slewing System | 360° Continuous Hydraulic Rotation |
| Hydraulic Pump | Piston Pump |
| Front Outrigger Span | 7.2 m* |
| Rear Outrigger Span | 3.9 m |
| Rear Stabilizers | Factory-Supplied Single-Chamber Type |
| Hydraulic Cooler | Original Automatic Temperature-Controlled Oil Cooler |
Boom dimensions and front outrigger span reflect the supplied vehicle configuration and require confirmation against the exact crane variant.
Five-Section Telescopic Boom
The SPS30000 five-section telescopic boom provides adjustable lifting reach for handling materials and equipment at different heights and working positions.
The specified configuration offers an extended boom length of approximately 19.5 m, subject to confirmation against the manufacturer’s configuration-specific data.
The telescopic design allows the operator to adjust boom extension according to the load, working radius and lifting conditions.
360° Continuous Hydraulic Slewing
The crane features continuous hydraulic slewing, allowing the boom to rotate through 360 degrees.
This supports flexible load positioning during construction material handling, equipment loading and industrial lifting operations.
Wide-Span Stabilizer System
The specified crane installation includes front stabilizers with a span of approximately 7.2 m and rear stabilizers with a span of approximately 3.9 m.
The rear stabilizers use a SANY PALFINGER factory-supplied single-chamber configuration.
The stabilizer system provides support during crane operation. Operators must deploy the stabilizers according to the manufacturer’s instructions and applicable load chart.
Hydraulic System and Cooling
The crane uses a hydraulic piston pump to support lifting, boom extension and slewing functions.
An original automatic temperature-controlled hydraulic oil cooler helps regulate hydraulic oil temperature during repeated lifting operations.
Lifting Performance
The SANY PALFINGER SPS30000 12 Ton Loader Crane is designed for medium- and heavy-duty lifting applications.
Its maximum rated lifting capacity is 12,000 kg, subject to the applicable crane configuration and load chart.
The five-section telescopic boom provides extended reach for loading construction materials, industrial machinery and other equipment.
Key Lifting Specifications
| Lifting Parameter | Specification |
|---|---|
| Rated Lifting Capacity | 12,000 kg |
| Boom Sections | 5 |
| Fully Extended Boom Length | 19.5 m* |
| Maximum Lifting Height | 21.5 m* |
| Slewing Range | 360° Continuous |
| Front Outrigger Span | 7.2 m* |
| Rear Outrigger Span | 3.9 m |
Values marked with an asterisk are based on the supplied vehicle configuration and must be verified before publication.
Lifting Capacity and Working Radius
The crane’s rated lifting capacity varies according to the working radius, boom extension, boom angle and stabilizer configuration.
A maximum rated lifting capacity of 12 tons does not mean that the crane can lift 12 tons at its maximum boom extension.
For safe operation, the permissible lifting load at each working radius must be determined using the official SANY PALFINGER SPS30000 load chart corresponding to the installed crane variant.
DONGFENG Tianjin 6×4 Heavy-Duty Chassis
The truck uses a DONGFENG Tianjin 6×4 chassis featuring tandem rear axles, a reinforced triple-layer frame and a Yuchai 270 HP diesel engine.
The 6×4 drive configuration and heavy-duty chassis provide a platform for mounting the loader crane and reinforced cargo body.
Chassis Technical Specifications
| Specification | Details |
|---|---|
| Chassis Brand | DONGFENG |
| Chassis Series | Tianjin |
| Drive Configuration | 6×4 |
| Cab | D560 Flat-Roof Extended Cab |
| Engine Brand | Yuchai |
| Engine Power | 270 HP |
| Emission Standard | China VI |
| Transmission | FAST Gear 9-Speed Manual with Synchronizers |
| PTO | Factory-Installed Power Take-Off |
| Wheelbase | 5,700 + 1,350 mm |
| Front Axle | 6 Ton |
| Rear Axles | 2 × 10 Ton |
| Chassis Frame | 300 mm Straight-Through Triple-Layer Frame |
| Frame Reinforcement | Reinforced Flange Plates |
| Tires | 11.00R20 Steel Radial Tires |
Yuchai 270 HP Diesel Engine
The Yuchai 270 HP diesel engine is designed for commercial vehicle transportation and heavy-duty operating conditions.
Combined with a FAST Gear nine-speed synchronized manual transmission, the powertrain supports road transport and crane-related operations.
The factory-installed power take-off supplies mechanical power to the crane hydraulic system.
6×4 Tandem Rear Axle Configuration
The truck uses a 6×4 drive configuration with a 6-ton front axle and two 10-ton rear axles.
This arrangement provides load-bearing capacity for the vehicle’s structural equipment and transportation duties.
The actual permitted gross vehicle weight and payload must be determined from the approved vehicle configuration.
Reinforced Triple-Layer Chassis Frame
The DONGFENG chassis features a 300 mm straight-through triple-layer frame with reinforced flange plates.
This structure provides a mounting foundation for the SANY PALFINGER loader crane, subframe and cargo body.
D560 Extended Cab and Driver Comfort
The DONGFENG D560 flat-roof extended cab includes:
- Factory air conditioning
- Air suspension driver’s seat
- Electric power windows
- Remote central door locking
- Driving recorder
- Remote engine throttle control
- Factory-installed PTO
These features support driver comfort and convenient operation during transportation and crane-related work.
8.4 m Heavy-Duty Reinforced Cargo Body
The vehicle is equipped with an 8,400 × 2,450 × 550 mm reinforced engineering cargo body, designed for transporting suitable construction materials, machinery and industrial equipment.
The cargo body incorporates a heavy-duty continuous subframe, reinforced crossmembers, channel-steel side rails and a strengthened headboard structure.
Cargo Body Specifications
| Specification | Details |
|---|---|
| Cargo Body Length | 8,400 mm |
| Cargo Body Width | 2,450 mm |
| Cargo Body Side Height | 550 mm |
| Body Type | Reinforced Engineering Cargo Body |
| Construction | Cold-Riveted Steel Structure |
| Subframe | 8 mm Double-Cross Reinforced Continuous Subframe |
| Crossmembers | Closely Spaced Formed-Steel Crossmembers |
| Side Rails | Reinforced Channel Steel |
| Headboard Frame | Reinforced Channel-Steel Structure |
Double-Cross Reinforced Subframe
The cargo body uses an 8 mm double-cross reinforced continuous subframe, designed to provide structural support and distribute loads through the vehicle frame.
Cold-Riveted Engineering Cargo Body
The cold-riveted cargo body incorporates reinforced floor and side structures for demanding transportation applications.
Closely spaced formed-steel crossmembers and channel-steel side rails provide additional structural reinforcement.
Reinforced Headboard Structure
The cargo body uses a channel-steel reinforced front headboard frame to strengthen the front body structure and support cargo-handling applications.
Key Advantages
1. Integrated Lifting and Cargo Transportation
The truck combines a 12-ton loader crane and an 8.4 m cargo body, allowing suitable materials to be loaded, transported and unloaded using one vehicle.
2. SANY PALFINGER Five-Section Loader Crane
The SPS30000 telescopic loader crane provides adjustable boom extension, continuous hydraulic slewing and a dedicated stabilizer system for lifting operations.
3. Yuchai 270 HP Powertrain
The Yuchai diesel engine and nine-speed synchronized transmission provide a powertrain for heavy-duty transportation and crane-related operations.
4. 6×4 Heavy-Duty Chassis
The 6×4 chassis features tandem rear axles, a reinforced triple-layer frame and heavy-duty tires, providing a platform for combined lifting and transportation duties.
5. Long Reinforced Cargo Body
The 8.4 m cargo body offers a long loading platform for construction materials, industrial equipment and suitable machinery.
6. Hydraulic Cooling and Stabilizers
The crane is equipped with an original hydraulic oil cooler and front and rear stabilizers to support crane operation under approved working conditions.
Applications
The DONGFENG Tianjin 12 Ton Truck Mounted Crane is suitable for lifting and transportation applications across construction, logistics and industrial projects.
Construction Material Handling
Loading and transporting construction materials, steel sections and suitable prefabricated components.
Heavy Machinery Loading
Handling industrial machinery and construction equipment within the crane’s rated lifting limits.
Steel Structure Installation
Lifting and positioning structural components according to the crane’s working radius and load chart.
Infrastructure Construction
Supporting equipment handling and material transportation for road, utility and infrastructure projects.
Industrial Logistics
Loading and unloading machinery, materials and industrial equipment at factories, logistics yards and project sites.
Equipment Transportation
Transporting suitable construction equipment and materials using the reinforced 8.4 m cargo platform.
Frequently Asked Questions
What is the lifting capacity of this DONGFENG Tianjin crane truck?
The vehicle uses a SANY PALFINGER SPS30000 loader crane with a rated lifting capacity of 12 tons. Actual permissible lifting loads depend on the crane configuration, working radius and load chart.
How many boom sections does the SPS30000 crane have?
This vehicle is specified with a five-section telescopic straight boom.
What engine does this truck mounted crane use?
The truck is equipped with a Yuchai 270 HP diesel engine meeting China VI emission standards.
What is the drive configuration?
The vehicle features a 6×4 chassis with a 6-ton front axle and two 10-ton rear axles.
What is the wheelbase?
The wheelbase configuration is 5,700 + 1,350 mm.
What is the cargo body size?
The reinforced engineering cargo body measures 8,400 × 2,450 × 550 mm.
Can this crane truck lift and transport cargo?
Yes. This type of truck mounted crane combines a loader crane and cargo platform for lifting, loading, unloading and transportation. Actual payload and crane lifting capacity must remain within the approved operating limits.
