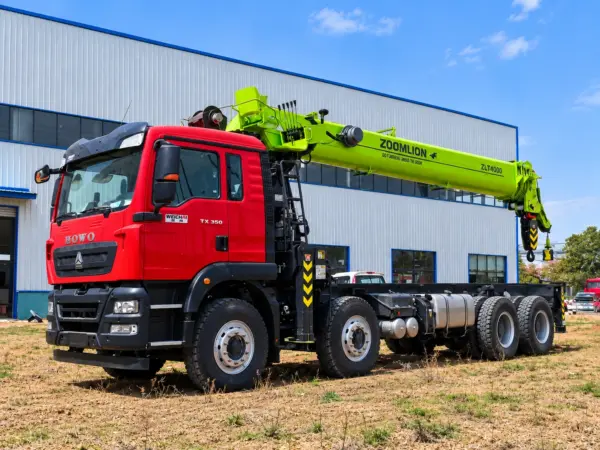

SINOTRUK HOWO 8×4 16 Ton Truck Mounted Crane with Zoomlion 5-Section Boom

Product Overview

The SINOTRUK HOWO 8×4 16 ton truck mounted crane combines a heavy-duty HOWO chassis with a Zoomlion 5-section telescopic boom crane. Powered by a 350 HP Weichai engine and matched with a SINOTRUK 12-speed transmission, the vehicle is designed for heavy lifting, cargo transportation and demanding construction applications.

The Zoomlion crane provides a rated lifting capacity of 16 tons and features a 5-section telescopic boom, long working reach, continuous 360° slewing, wide-span outriggers, dual winches and an intelligent load moment monitoring system. An 8.2 m reinforced cargo body allows the truck to perform lifting and transportation operations with one vehicle.

Key Specifications

Specification	Details
Chassis	SINOTRUK HOWO
Drive Type	8×4
Crane Brand	Zoomlion
Rated Lifting Capacity	16 Ton
Boom	5-Section Telescopic Boom
Maximum Boom Length	22 m
Maximum Lifting Height	23.5 m
Maximum Lifting Moment	400 kN·m
Engine	Weichai 350 HP
Transmission	SINOTRUK 12-Speed
Rear Axle	16 Ton Hub-Reduction Axle
Tires	11.00R20
Cargo Body	8200 × 2450 × 550 mm

SINOTRUK HOWO 8×4 Heavy-Duty Chassis

The heavy-duty SINOTRUK HOWO 8×4 chassis provides a strong foundation for the 16 ton crane and reinforced cargo body. The 350 HP Weichai engine, 12-speed transmission and heavy-duty axles are designed for demanding lifting and transport operations.

• Weichai 350 HP diesel engine
• SINOTRUK 12-speed transmission
• 7.5 ton front axle
• 16 ton hub-reduction rear axle
• Three differential locks
• 11.00R20 steel radial tires
• 300 mm straight-through triple-layer frame
• ABS
• Air conditioning
• Remote key
• Power windows
• Electric cab tilting system
• Original SINOTRUK factory equipment

Zoomlion 16 Ton 5-Section Telescopic Boom Crane

Specification	Value
Rated Capacity	16 Ton
Boom Sections	5
Maximum Boom Length	22 m
Maximum Lifting Height	23.5 m
Maximum Lifting Moment	400 kN·m
Slewing Angle	360° Continuous
Outrigger Span	2340–8060 mm
Crane Dimensions	7546 × 2540 × 2707 mm
Crane Weight	Approx. 6800 kg
Hydraulic Oil Tank	300 L
Hydraulic Flow	80 L/min
Wire Rope Diameter	14 mm
Wire Rope Length	125 m / 55 m

Crane Features & Safety Systems

• HG785 high-strength boom steel
• U-shaped telescopic boom structure
• Double telescopic cylinders
• Dual slewing reducers
• Dual winches
• High-pressure piston hydraulic pump
• Intelligent load moment display
• Original Zoomlion 3 ton auxiliary hook
• Original Zoomlion hydraulic oil cooler
• One-touch engine start/stop from upper controls
• Emergency stop system
• Wide-span double-stage front outriggers

The intelligent load moment display provides real-time information including boom angle, boom extension, working radius and allowable lifting load, helping the operator monitor crane operating conditions.

Lifting Performance

The Zoomlion 16 ton 5-section telescopic crane provides a maximum rated lifting capacity of 16,000 kg. Lifting capacity varies according to boom length and working radius. At full 22 m boom extension, the crane can lift 5,150 kg at a 6.5 m working radius and 1,590 kg at a 21 m working radius.

Working Condition	Boom Length	Working Radius	Rated Capacity
Maximum lifting capacity	6.2 m	2.5 m	16,000 kg
Two-section boom	10.15 m	2.5 m	13,000 kg
Two-section long reach	10.15 m	9.5 m	3,890 kg
Full boom	22 m	6.5 m	5,150 kg
Full boom	22 m	10 m	3,350 kg
Full boom	22 m	15 m	2,230 kg
Full boom	22 m	18 m	1,860 kg
Full boom	22 m	21 m	1,590 kg

22 m Full Boom Rated Lifting Capacity

Working Radius	Rated Capacity
6.5 m	5,150 kg
7.0 m	4,780 kg
7.5 m	4,460 kg
8.0 m	4,180 kg
8.5 m	3,940 kg
9.0 m	3,720 kg
9.5 m	3,520 kg
10.0 m	3,350 kg
11.0 m	3,040 kg
12.0 m	2,790 kg
13.0 m	2,570 kg
14.0 m	2,390 kg
15.0 m	2,230 kg
16.0 m	2,090 kg
17.0 m	1,970 kg
18.0 m	1,860 kg
19.0 m	1,760 kg
20.0 m	1,670 kg
21.0 m	1,590 kg

8.2 m Heavy-Duty Reinforced Cargo Body

Cargo Body Size: 8200 × 2450 × 550 mm

The truck is equipped with an 8.2 m heavy-duty reinforced cargo body designed for machinery, construction materials and general cargo transportation.

• 8 mm double-cross reinforced continuous subframe
• 8 mm reinforcement plates at critical stress areas
• Full-size 8 mm crane base reinforcement plate
• Densely arranged crossmembers
• Double-reinforced front and rear crossmembers
• Reinforced channel-steel side rails
• Full-length reinforced headboard
• 6 mm reinforced connecting plates
• 200 mm widened vertical posts
• 250 mm heavy-duty rear beam
• Toolbox
• Cargo tensioners
• Access handrails

Applications

• Construction material handling
• Steel structure installation
• Machinery loading and unloading
• Equipment transportation
• Logistics yards
• Infrastructure projects
• Municipal engineering
• Port operations
• Oilfield projects
• Heavy equipment handling

Customization Options

• Crane brand and capacity
• Truck chassis brand
• Cargo body dimensions
• Outrigger configuration
• Auxiliary hook
• Cab configuration
• Tires
• Toolboxes
• Paint and branding
• Export configuration according to destination market

FAQ

What is the lifting capacity of this truck mounted crane?

The Zoomlion crane has a rated maximum lifting capacity of 16 tons. Actual lifting capacity varies according to boom length, working radius and crane operating conditions.

How long is the crane boom?

The 5-section telescopic boom reaches approximately 22 m at full extension.

What engine does the HOWO crane truck use?

This configuration uses a 350 HP Weichai diesel engine matched with a SINOTRUK 12-speed transmission.

What is the cargo body size?

The standard reinforced cargo body measures approximately 8200 × 2450 × 550 mm.

Can the configuration be customized?

Chassis, crane, cargo body and other vehicle configurations can be customized according to operating requirements and destination-market regulations.
