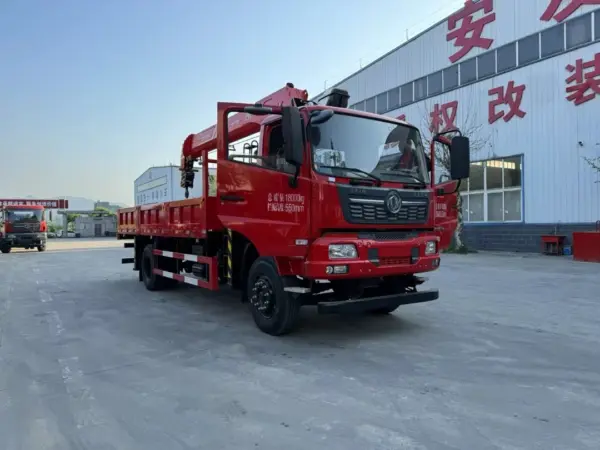

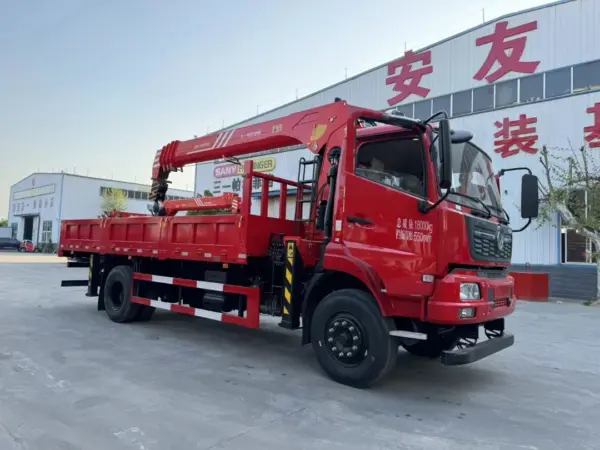

DONGFENG Tianjin 8 Ton Truck Mounted Crane with SANY PALFINGER SPS20000
The DONGFENG Tianjin 8 Ton Truck Mounted Crane combines a 225 HP DONGFENG chassis with a SANY PALFINGER SPS20000 4-section telescopic loader crane. Featuring a 14.3 m extended boom, 16.3 m maximum lifting height, 360° continuous hydraulic slewing and a 6.1 m reinforced cargo body, this crane truck is designed for construction material handling, equipment loading and cargo transportation.
Product Overview
The DONGFENG Tianjin 8 Ton Truck Mounted Crane is a lifting and cargo transportation vehicle built on a DONGFENG commercial truck chassis and equipped with a SANY PALFINGER SPS20000 8-ton telescopic loader crane.
Powered by a 225 HP DDi47E225-60 diesel engine and paired with a FAST Gear 8JS85TM 8-speed manual transmission with power take-off (PTO), the vehicle combines crane lifting, material loading and cargo transportation in one versatile platform.
The truck features a 5,000 mm wheelbase, reinforced triple-layer chassis frame, 6-ton front axle, 9-ton rear axle and 10.00R20 steel radial tires. Its gross vehicle weight is rated at 18,000 kg, with multiple curb-weight configurations.
The SANY PALFINGER loader crane provides a maximum rated lifting capacity of 8,000 kg, a four-section telescopic boom extending to approximately 14.3 m and a maximum lifting height of approximately 16.3 m. A reinforced 6.1 m cargo body enables the truck to transport materials and equipment in addition to performing lifting operations.
SANY PALFINGER SPS20000 Loader Crane
The vehicle is equipped with a SANY PALFINGER SPS20000 four-section telescopic loader crane, designed for lifting, loading and unloading operations in construction, logistics and industrial environments.
Crane Technical Features
- Rated Lifting Capacity: 8,000 kg
- Crane Model: SANY PALFINGER SPS20000
- Boom Configuration: Four-section telescopic straight boom
- Retracted Boom Length: Approximately 5.3 m
- Fully Extended Boom Length: Approximately 14.3 m
- Maximum Lifting Height: Approximately 16.3 m
- Slewing System: 360° continuous hydraulic rotation
- Hydraulic Pump: High-pressure piston pump
- Front Outrigger Span: 5.6 m
- Rear Outrigger Span: 3.9 m
- Rear Outriggers: Factory-supplied stabilizers
- Hydraulic Cooling: Original automatic temperature-controlled oil cooler
Telescopic Boom Design
The four-section telescopic boom allows the operator to adjust boom extension to suit different lifting heights and loading positions. With a fully extended boom length of approximately 14.3 m, the crane supports loading and unloading operations involving machinery, building materials and industrial equipment.
Continuous Hydraulic Slewing
The crane features a 360° continuous hydraulic slewing system, allowing the boom to rotate around the vehicle for flexible material handling and positioning.

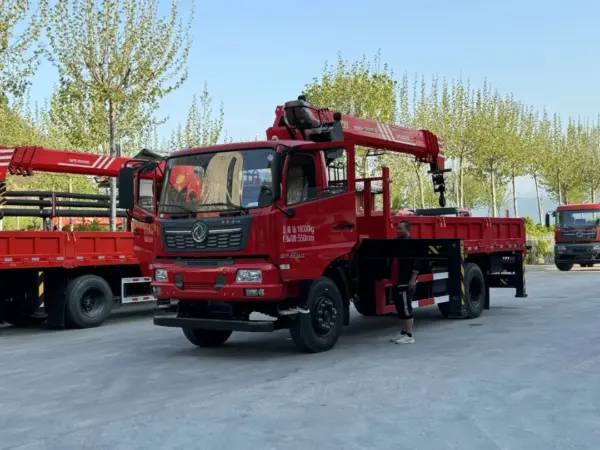

Stabilizer System
The crane is equipped with front and rear outriggers, providing support during lifting operations. The front outriggers extend to approximately 5.6 m, while the rear outriggers provide a span of approximately 3.9 m.
The stabilizers must be deployed according to the crane manufacturer’s operating instructions and the conditions specified in the load chart.
Hydraulic Cooling System
An original SANY PALFINGER automatic temperature-controlled hydraulic oil cooler helps regulate operating temperature during repeated lifting cycles.
Lifting Performance
The SANY PALFINGER SPS20000 8 Ton Loader Crane provides a maximum rated lifting capacity of 8,000 kg. Its four-section telescopic boom and continuous hydraulic rotation make it suitable for a variety of loading and material-handling tasks.
Key Lifting Specifications
| Performance Parameter | Specification |
|---|---|
| Maximum Rated Lifting Capacity | 8,000 kg |
| Telescopic Boom Sections | 4 |
| Retracted Boom Length | Approx. 5.3 m |
| Fully Extended Boom Length | Approx. 14.3 m |
| Maximum Lifting Height | Approx. 16.3 m |
| Slewing Range | 360° Continuous |
| Front Outrigger Span | 5.6 m |
| Rear Outrigger Span | 3.9 m |
Important: Actual lifting capacity depends on working radius, boom extension, lifting angle, stabilizer configuration and operating conditions. Refer to the applicable SANY PALFINGER load chart to determine the rated lifting capacity for each working condition.
DONGFENG Tianjin Heavy-Duty Chassis
The truck uses a DONGFENG commercial vehicle chassis configured for crane installation and cargo transportation.
Its straight-through triple-layer chassis frame, heavy-duty axles and 5,000 mm wheelbase provide structural support for the loader crane and reinforced cargo body.
Engine and Drivetrain
- Complete Vehicle Model: YG5180JSQB5
- Engine Model: DDi47E225-60
- Engine Power: 225 HP
- Emission Standard: China VI
- Transmission: FAST Gear 8JS85TM, 8-Speed Manual
- Power Take-Off: Transmission PTO
- Wheelbase: 5,000 mm
- Front Axle: 6,000 kg
- Rear Axle: 9,000 kg
- Chassis Frame: Straight-Through Triple-Layer Frame
- Tires: 10.00R20 Steel Radial Tires
- Fuel Tank: 200 L Steel Tank
- Gross Vehicle Weight: 18,000 kg
- Curb Weight Options: 11,500 / 12,000 / 12,500 kg

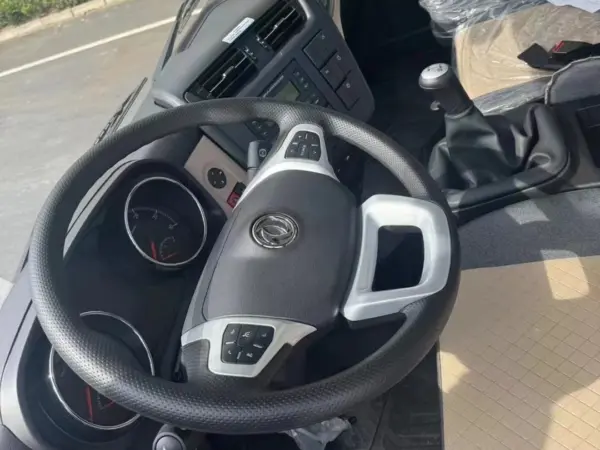

Cab and Driver Comfort
The DONGFENG D530 single-row cab accommodates three occupants and is equipped with:
- Multifunction steering wheel
- Automatic climate control
- Remote central door locking
- Electric power windows
- Driving recorder
- Three-seat cab configuration
These features support operator comfort and convenience during daily transportation and crane-related work.
6.1 m Reinforced Cargo Body
The vehicle features a 6,100 × 2,450 × 550 mm reinforced engineering cargo body, designed to accommodate machinery, construction materials and other cargo within the vehicle’s approved load limits.
Cargo Body Construction
- Cargo Body Dimensions: 6,100 × 2,450 × 550 mm
- Body Construction: Cold-riveted reinforced cargo body
- Subframe: 8 mm cross-reinforced continuous subframe
- Crossmembers: Densely arranged reinforced transverse beams
- Side Rails: Heavy-duty channel-steel construction
- Headboard Frame: Reinforced channel-steel structure
- Body Structure: Reinforced floor and side panels
The cross-reinforced continuous subframe helps distribute cargo and crane-related structural loads through the vehicle frame. Additional reinforcement is incorporated into the crossmembers, side rails and front headboard structure.
The combination of a telescopic loader crane and reinforced cargo platform enables the vehicle to perform lifting and transportation tasks without requiring a separate cargo truck for every operation.
Key Advantages
1. Combined Lifting and Cargo Transportation
The truck-mounted loader crane and 6.1 m cargo body allow the vehicle to lift, load, unload and transport cargo using one truck.
2. SANY PALFINGER Telescopic Loader Crane
The SPS20000 four-section boom offers flexible reach, 360° continuous hydraulic slewing and a dedicated stabilizer system for loading and material-handling applications.
3. DONGFENG 225 HP Powertrain
The 225 HP engine and 8-speed transmission provide power for transportation duties, while the transmission-mounted PTO supplies power to the crane hydraulic system.
4. Reinforced Chassis and Cargo Structure
A triple-layer chassis frame, heavy-duty axles and 8 mm reinforced cargo subframe provide a durable structural foundation for combined crane and transport operations.
5. Operator Convenience
The three-seat D530 cab, automatic climate control, multifunction steering wheel, central locking and electric windows support comfortable daily operation.
Applications
The DONGFENG Tianjin 8 Ton Truck Mounted Crane is suitable for various lifting and transportation applications, including:
- Construction Material Handling: Loading and transporting steel, timber and construction supplies
- Machinery Loading and Unloading: Handling equipment and machinery within rated lifting limits
- Steel Structure Installation: Lifting and positioning structural components
- Industrial Logistics: Loading and unloading materials at factories and logistics yards
- Municipal Engineering: Supporting maintenance and infrastructure projects
- Utility Construction: Handling utility equipment and installation materials
- Equipment Transportation: Combining cargo transportation with on-site lifting
Frequently Asked Questions
What is the lifting capacity of the DONGFENG Tianjin truck mounted crane?
The truck is equipped with a SANY PALFINGER SPS20000 loader crane with a maximum rated lifting capacity of 8,000 kg. The actual rated load depends on the working radius, boom extension and operating conditions.
How long is the telescopic boom?
The four-section boom measures approximately 5.3 m when retracted and extends to approximately 14.3 m.
What is the maximum lifting height?
The maximum lifting height is approximately 16.3 m for the specified crane configuration.
Can this crane truck transport cargo?
Yes. The vehicle is equipped with a reinforced 6,100 × 2,450 × 550 mm cargo body for transporting equipment and materials within the vehicle’s permitted payload.
What engine does this DONGFENG crane truck use?
The vehicle uses a 225 HP DDi47E225-60 diesel engine matched with a FAST Gear 8JS85TM 8-speed manual transmission.
Does the crane support full rotation?
Yes. The SPS20000 crane features a 360° continuous hydraulic slewing system.
